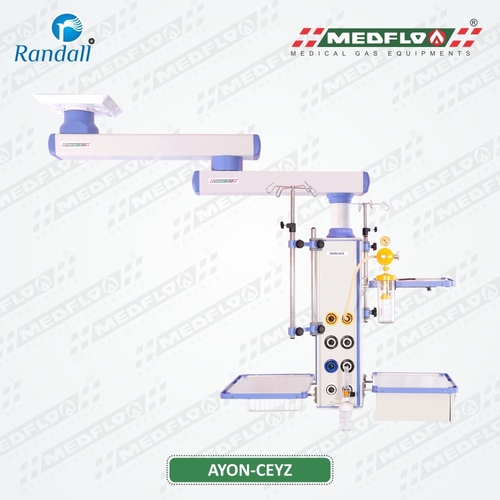

Single Arm Pendant Vertical
One arm Surgery Pendant for Operating Theatres.
• Medflo provides the range of quality ceiling pendants for anesthetic, surgery and monitoring purpose in Operation Theatre and Intensive Care unit, i.e. Fixed pendants, fixed rigid pendant, single Arm movable pendant, double arm multi-movement, pendant, etc. 37
• Single over head suspension Vertical one arm system for OT gas terminal outlets.
• Medflo pendant is a compact modular unit, which can be supplied in various configurations to meet exact requirement of hospital. The pendant consists of a ceiling support, upon which a wide selection of arms can be mounted.
• It has the greatest advantage to accommodate all Medical gas, Electrical services, Data communication services and facilitating equipment management.
• Medical gas outlets configuration oxygen-2,Vacuum-2, Medical air-1, Medical air-7 bar-1, oxide–1(Quantity Optional).
• 1- Arm system for OT.
• Extension arm horizontal 1 move by (radius) 900mm
• Level degrees rotation; 0 - 340 Extension Arm and terminal.
• Box can rotate together and separately.
• Net loading capacity 125 to 175kg.
• Main socket: 8no’s 5-15amps (universal standard).
• Main material used the high strength aluminum alloy, the whole sealed design.
• Arm High Density aluminium alloy extrusion.
• Ceiling mounted installation the reliable and firm.
• Pendant N.W – 80Kg access by equipment carrier
• Single over head suspension Vertical
• Stainless steel I.V.pole.
• Ward vacuum unit clamp
