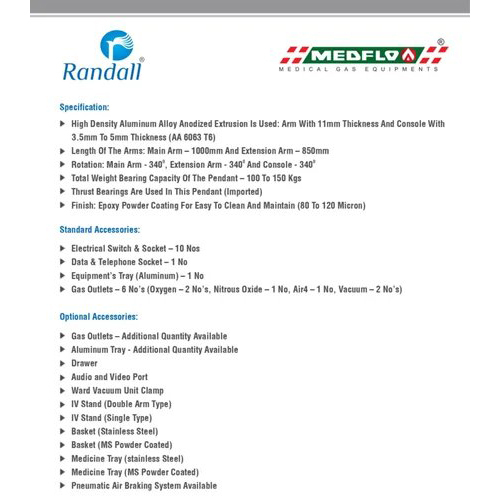

LEGACY WAGGLE

LEGACY

LEGACY - WAGGLE

LEGACY - SAGA

LEGACY - BRISK

Arm System

Double Arm System

Single Arm System

Rigid Type

Console Width

650mm (Standard)

650mm (Standard)

650mm (Standard)

Console Specification

200 Sq.mm, 250 Sq.mm & 300 Sq.mm (Length & Height)

Length of the Arms

Main Arm - 1000mm & Extension arm - 850mm

Main Arm - 1000mm

Nil

Rotation

Main Arm - 340 Degree , Extension Arm - 340 Degree & Console - 340 Degree

Main Arm - 340 Degree, & Console - 340 Degree

& Console - 340 Degree

Radius Covered

1000mm + 850mm

1000mm

Nil

Net Weight of the pendant with accessories

150 kg

100 kg

80Kg

 Net Load Capacity

100 to 150 Kg

125 to 175 Kg

125 to 175 Kg

Bearing Locks

Tapper Roller Bearing - 6 Nos

Tapper Roller Bearing - 4 Nos

Tapper Roller Bearing - 2 Nos

Aluminum

Structural profile not less than 10 mm/cover profile not less than 3 - 3.5 mm, Material -Alloy 6063T6

Structural profile not less than 10 mm/cover profile not less than 3 - 3.5 mm, Material -Alloy 6063T6

Cover profile not less than 3 - 3.5 mm, Material Alloy 6063

Pneumatic Braking System (Optional)

Works with Minimum Pressure - 4 Bar to Maximum Pressure - 6 Bar

Medical Gas Outlets

All type of Gas outlets according to National standards (DIN, BS, Med gas, JPN, AGSS & MC70 (Quantity Optional)

Electrical

6 to 16 Amps Switch & Three Pin Socket, RJ45 data connector,  telephone connections and etc. (Quantity Optional)

Wire minimum section

Electrical sockets 1.5 (or) 2.5 sq.mm

Accessories

Drawer, Tray, IV Pole, BHU Ward Vacuum unit clamp & SS Basket (Quantity Optional)

Vertical Piping

Seamless steel pipe with 8mm thickness used

Ceiling fixing

Clamped onto the ceiling with (Threaded rod) an adjustable support.

Testing

The products are fully tested and ready for immediate installing
